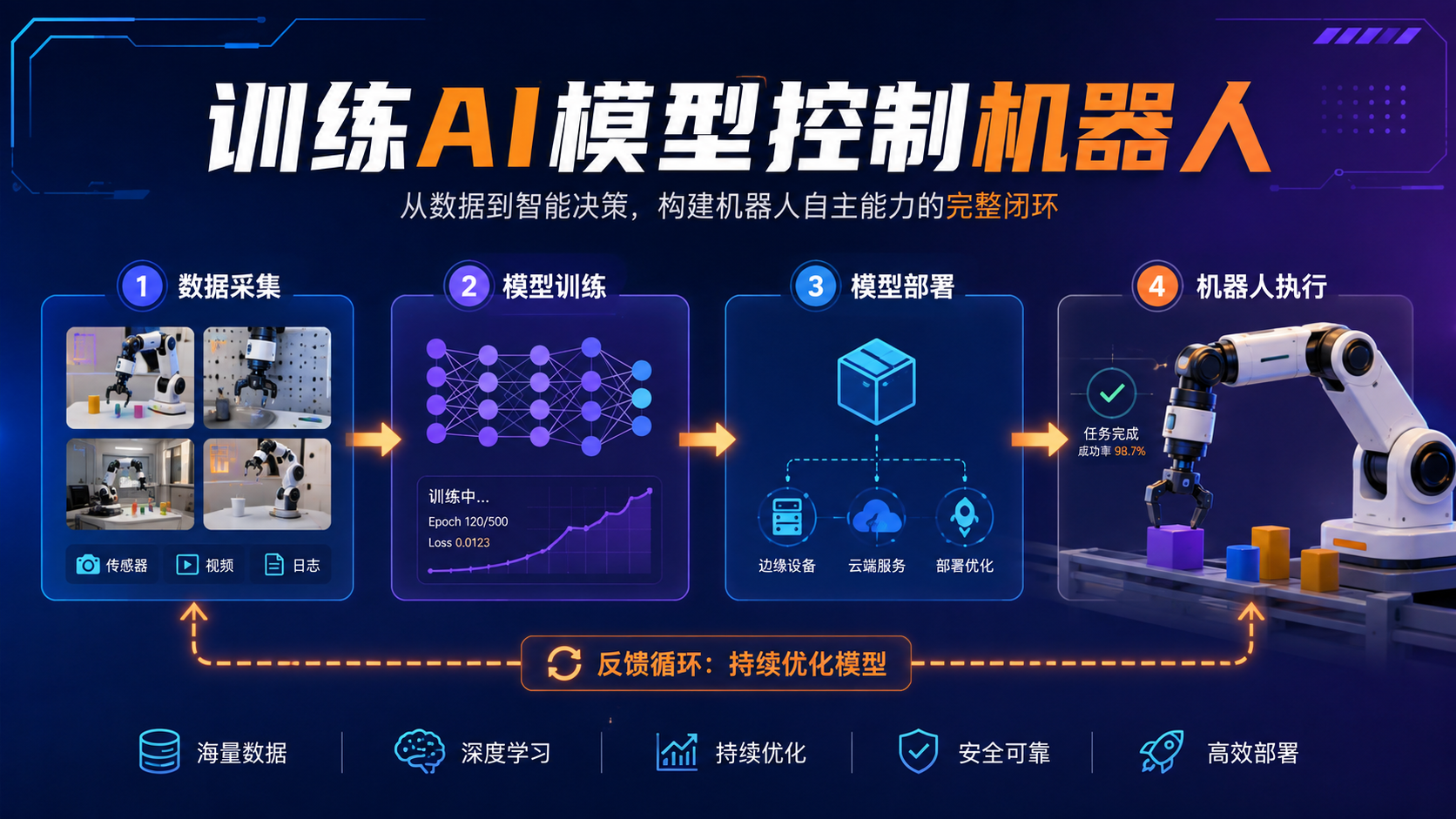

训练AI模型用于机器人控制

强化学习（RL）是训练机器人控制策略的强大工具。本文讲解如何在Isaac Sim中使用Isaac Gym训练机械臂控制策略。

强化学习基础

强化学习的核心要素：

要素	说明	机器人示例
状态（State）	环境当前状态	关节角度、末端位置
动作（Action）	智能体的决策	关节力矩、目标位置
奖励（Reward）	反馈信号	距离目标的负值
策略（Policy）	状态到动作的映射	神经网络

定义训练环境

import numpy as np
import torch
from isaacgym import gymapi, gymtorch, gymutil

class RobotReachEnv:
    def __init__(self, num_envs=1024):
        self.num_envs = num_envs

        # 创建Gym实例
        self.gym = gymapi.acquire_gym()

        # 配置仿真参数
        sim_params = gymapi.SimParams()
        sim_params.dt = 1/60
        sim_params.gravity = gymapi.Vec3(0, -9.81, 0)
        sim_params.up_axis = gymapi.UP_AXIS_Y

        self.sim = self.gym.create_sim(
            compute_device_id=0,
            graphics_device_id=0,
            physics_engine=gymapi.SIM_PHYSX,
            sim_params=sim_params
        )

        # 创建环境
        self._create_envs()

        # 获取张量
        self.root_state_tensor = self.gym.acquire_actor_root_state_tensor(self.sim)
        self.dof_state_tensor = self.gym.acquire_dof_state_tensor(self.sim)
        self.gym.refresh_actor_root_state_tensor(self.sim)
        self.gym.refresh_dof_state_tensor(self.sim)

    def _create_envs(self):
        """创建多个并行环境"""
        plane_params = gymapi.PlaneParams()
        plane_params.normal = gymapi.Vec3(0, 1, 0)
        self.gym.add_ground(self.sim, plane_params)

        # 加载机械臂资产
        asset_root = "assets"
        asset_file = "franka/franka.urdf"
        asset = self.gym.load_asset(self.sim, asset_root, asset_file)

        # 创建环境网格
        spacing = 2.0
        env_lower = gymapi.Vec3(-spacing, 0, -spacing)
        env_upper = gymapi.Vec3(spacing, 0, spacing)

        self.envs = []
        self.actor_handles = []

        for i in range(self.num_envs):
            env = self.gym.create_env(self.sim, env_lower, env_upper, 32)

            # 放置机械臂
            pose = gymapi.Transform()
            pose.p = gymapi.Vec3(0, 0, 0)
            actor_handle = self.gym.create_actor(
                env, asset, pose, "franka", i, 1
            )
            self.envs.append(env)
            self.actor_handles.append(actor_handle)

    def reset(self):
        """重置环境"""
        self.gym.refresh_actor_root_state_tensor(self.sim)
        self.gym.refresh_dof_state_tensor(self.sim)

        # 获取当前状态
        states = self._get_states()
        return states

    def step(self, actions):
        """执行一步"""
        # 应用动作
        self._apply_actions(actions)

        # 步进仿真
        self.gym.simulate(self.sim)
        self.gym.fetch_results(self.sim, True)

        # 刷新状态
        self.gym.refresh_actor_root_state_tensor(self.sim)
        self.gym.refresh_dof_state_tensor(self.sim)

        # 获取观测、奖励、是否结束
        obs = self._get_states()
        rewards = self._compute_rewards()
        dones = self._compute_dones()

        return obs, rewards, dones, {}

    def _get_states(self):
        """获取状态观测"""
        dof_states = gymtorch.wrap_tensor(self.dof_state_tensor)
        positions = dof_states[..., 0]  # 关节位置
        velocities = dof_states[..., 1]  # 关节速度

        # 组合状态向量
        states = torch.cat([positions, velocities], dim=-1)
        return states

    def _compute_rewards(self):
        """计算奖励"""
        # 末端执行器位置
        ee_pos = self._get_end_effector_position()
        target_pos = torch.tensor([0.5, 0.3, 0.2])

        # 距离奖励（越近越好）
        distance = torch.norm(ee_pos - target_pos, dim=-1)
        rewards = -distance

        return rewards

    def _compute_dones(self):
        """计算是否结束"""
        ee_pos = self._get_end_effector_position()
        target_pos = torch.tensor([0.5, 0.3, 0.2])
        distance = torch.norm(ee_pos - target_pos, dim=-1)

        # 成功或超时
        success = distance < 0.05
        timeout = self.step_count > 200

        return success | timeout

使用PPO训练

from stable_baselines3 import PPO
from stable_baselines3.common.env_util import make_vec_env

# 创建向量化环境
env = make_vec_env(lambda: RobotReachEnv(num_envs=1024), n_envs=1)

# 配置PPO
model = PPO(
    "MlpPolicy",
    env,
    learning_rate=3e-4,
    n_steps=2048,
    batch_size=64,
    n_epochs=10,
    gamma=0.99,
    verbose=1
)

# 训练
model.learn(total_timesteps=1_000_000)

# 保存模型
model.save("robot_reach_policy")

使用Isaac Gym原生训练

from isaacgym import rlgpu
from rlgames_common.torch import RLGPUAlgo

class IsaacPPO(RLGPUAlgo):
    def __init__(self, env, config):
        super().__init__(env, config)

        # 策略网络
        self.policy_net = torch.nn.Sequential(
            torch.nn.Linear(env.num_obs, 256),
            torch.nn.ReLU(),
            torch.nn.Linear(256, 128),
            torch.nn.ReLU(),
            torch.nn.Linear(128, env.num_actions)
        ).to(env.device)

        # 价值网络
        self.value_net = torch.nn.Sequential(
            torch.nn.Linear(env.num_obs, 256),
            torch.nn.ReLU(),
            torch.nn.Linear(256, 128),
            torch.nn.ReLU(),
            torch.nn.Linear(128, 1)
        ).to(env.device)

    def train(self, num_iterations=1000):
        for iteration in range(num_iterations):
            # 收集数据
            obs, actions, rewards, dones = self.rollout()

            # 计算优势
            advantages = self.compute_advantages(rewards, dones)

            # 更新策略
            self.update_policy(obs, actions, advantages)

            # 更新价值函数
            self.update_value(obs, rewards)

            if iteration % 10 == 0:
                print(f"Iteration {iteration}: mean_reward={rewards.mean():.2f}")

部署训练好的模型

class DeployedPolicy:
    def __init__(self, model_path):
        self.model = PPO.load(model_path)

    def get_action(self, obs):
        """获取动作"""
        action, _ = self.model.predict(obs, deterministic=True)
        return action

    def run(self, env):
        """在环境中运行策略"""
        obs = env.reset()
        done = False

        while not done:
            action = self.get_action(obs)
            obs, reward, done, info = env.step(action)
            env.render()

# 使用
policy = DeployedPolicy("robot_reach_policy")
policy.run(test_env)

FAQ

训练需要多长时间？

简单任务（如reach）几分钟到几小时。复杂任务（如灵巧操作）可能需要几天。

如何提高训练效率？

增加并行环境数量、使用GPU加速、调整超参数（学习率、batch size）。

训练好的模型可以直接部署到真实机器人吗？

通常需要Sim-to-Real迁移。建议先进行域随机化训练，再在真实机器人上微调。
